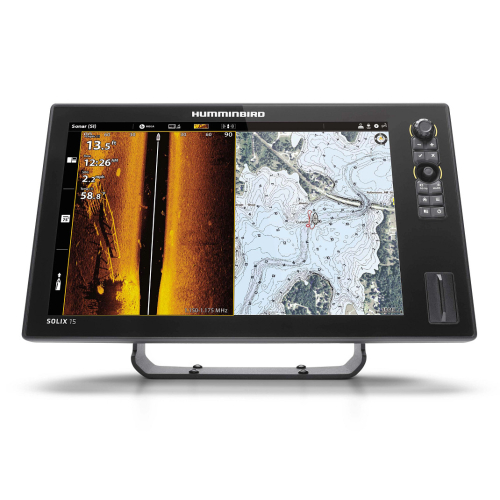

New Humminbird SOLIX 15 CHIRP MEGA SI Plus G3

The SOLIX 15 CHIRP MSI Plus G3 combines cutting-edge technologies like MEGA Side Imaging , MEGA Down Imaging , Dual Spectrum CHIRP Sonar and AutoChart Live on an ultra-clear Cross Touch® display. Take full advantage of the generous 15.4″ touchscreen display with customizable views and settings that allow you to see multiple technologies at once and find what you want quickly via the convenient side bar menu. Leverage the networking power of built-in Wi-Fi and NMEA 2000®, as well as Bluetooth® and Ethernet connections for compatibility with the One-Boat Network™ family of products from Humminbird, Minn Kota and Cannon.

FEATURES :

– Cross Touch Interface: Control your fish finder using the touchscreen or the keypad—it’s up to you. Any menu navigation you can do on the touchscreen can also be done on the keypad, providing quick and intuitive access to technologies on your terms, no matter your situation and conditions.

– Customized Experience: Utilize an intuitive user interface and sidebar menu which provide customizable settings and view combinations to make your fishing experience all your own.

– NEW Dual Core Processor: Perform any task with speed and ease, thanks to the ultra-responsive interface and upgraded processing power.

– Airmar Transducer ID: For those looking to install accessory 2D Airmar transducers, SOLIX G3 provides transducer ID to make for fast and simple setup.

– Industry-leading Humminbird sonar: Equipped with MEGA Side Imaging , MEGA Down Imaging and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA – Imaging provides views up to 250′ under and out to either side of your boat and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.

– Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

SPECS :

Item Number    104641
Series    SOLIX
Display Size – Diagonal    15.4″
Display Pixel Matrix    1280H x 800V
Sonar-Standard    Dual Spectrum CHIRP, MEGA Down Imaging , MEGA Side Imaging
Sonar-Coverage    20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
Sonar-Optional    50 kHz, 50/Low Airmar CHIRP and SM3000
CHIRP – Frequencies Supported    Full Mode (28-75 kHz), Narrow Mode (75-155 kHz), Optional Deepwater (28-250 kHz), Wide Mode (130-250 kHz)
Sonar-Frequencies Supported    50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar    1,200 ft (standard transducer), 5,000 ft (optional Airmar CHIRP SM3000)
CHIRP – Imaging-Frequencies Supported    455 kHz DI (435-535 kHz), 455 kHz SI (405-505 kHz), 800 kHz DI (800-860 kHz), 800 kHz SI (780-840 kHz), MEGA DI (1100-1200 kHz), MEGA SI (1050-1175 kHz)
Depth-Down Imaging    125 ft (800 kHz), 250 ft (MEGA), 400 ft (455 kHz)
Range-Side Imaging (Side-To-Side)    250 ft (800 kHz), 500 ft (MEGA), 800 ft (455 kHz)
Interface    Touch Screen
Features    Bluetooth, Built In GPS, Built In Mapping, CHIRP Digital Sonar, Down Imaging, Dual Spectrum CHIRP, MEGA Imaging , Networking, Side Imaging, Touch Screen, Wi-Fi
Memory Card Slot    Dual SD
Compatible With    AIS, AutoPilot, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, NMEA 2000, Radar, MEGA 360, One-Boat Network, Minn Kota Built-In MEGA DI, Minn Kota Built-In MEGA SI, Minn Kota US2 Sonar
Power Draw    4.0 Amps
Power Input    10.8-20 VDC
Power Output Peak-to-Peak    8000 Watts
Power Output RMS    1000 Watts
Screen Snap Shot    Included
Sonar Recording    Included
Mount-Standard    Gimbal
Mount-Standard Size    16.53″ W x 10.46″ H x 4.83″ D
Mount-Optional Size    16.53″ W x 10.05″ H x 1.2″ D
Transducer Mount Location    Transom
GPS Chartplotting    Included
GPS Trackplotting    Included
LakeMaster Compatibility    Yes
Coast Master Compatibility    Yes
Navionics Gold/HotMaps Compatibility    Yes
Navionics Platinum Compatibility    Yes
Platinum Compatibility    Yes
Heading Sensor GPS Compatibility    Yes
Upgradable Software    Yes
View Preset Keys    No
X-Press Menu System    No
Custom Digital Readout    Yes
Custom View Selections    Yes
Display Colors Grayscale    16-Bit
Display Size    11″ – 15″
Speed    Included
Temperature    Built In
Temperature Alarm    Yes
Temperature Graph    Yes
Transducer Included    XM 14 HW MSI T

• Availability:42 In Stock
• Model:SOLIX 15 CHIRP MEGA SI Plus G3
• Brand:
